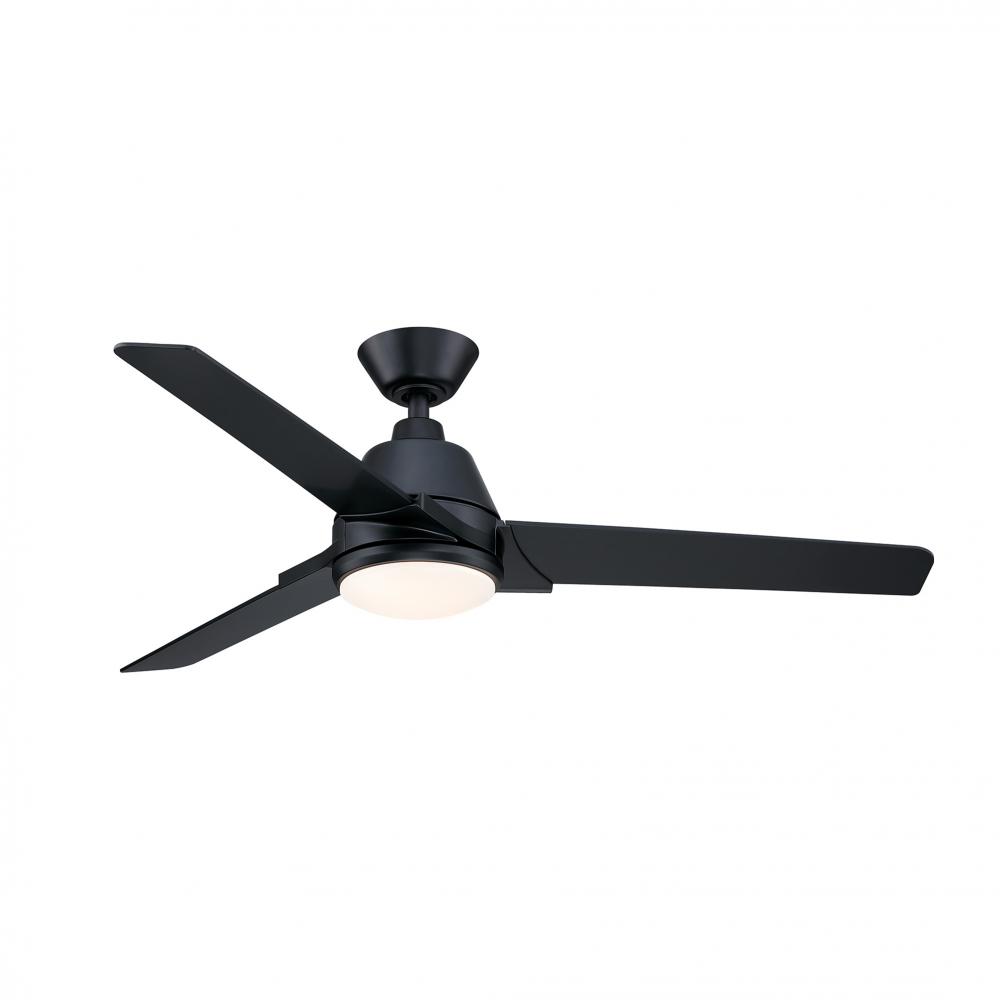

Pyramid - 52 inch - BL with BL Blades and LED LK
Image may not reflect selected features
/vendors/90/large/FP8406BL.jpg
additional image
Downloads
Click Here to View Spec Sheet Details
Click Here to View Manual Sheet Details
Product Specification
Item #
K7TE
Dimensions
Height: 14.52"
Width: 52.00"
Length: "
Additional product details
Category
Fans
Subcategory
Ceiling Fans with Light
Finish
Black
Option
Damp Rated
Voltage
10-99
Lumens
1101-1600
Number of Blades
3 Blades
Kelvin
2501-3000
Wattage
18w
Category
Fan-Uni
Finish
Black
Option
Damp Rated
Family
Pyramid
Glass
Opal Frosted
Voltage
120V
Number of Bulbs
1 Bulbs
Air Flow CFM
5217
Air Flow Efficiency
92
Blade Pitch
13
Bulb Type
18W LED Module
Canopy
6.1 Dia, 2.24 H
Harmonized Codes
8414.51.3000
Kelvin
3000
Length
52
Light Kit Included
Yes
Lumens / Light Output
1400
Motor Size
153 x 20
Motor Type
AC
Ship Carton Height
8.98
Ship Carton Length
24.41
Ship Carton Width
9.65
Ship Weight
19.29
Sold By
Each
Warranty
Limited Lifetime
Weight
17.4
Airflow Efficiency Low
171
Airflow Efficiency Medium
119
Avg Airflow Efficiency
110
Avg CFM Energy
4165
Avg Energy Use Watts
38
Avg Estimated Yearly Energy Cost
11
Avg Estimated Yearly Energy Cost on HIGH
16
Blade Finish Method
Painted
Blade Material
Composite
Blade Reversible
No
Blade Sweep
52
Bulb Base
Connector Pin
Bulb CRI
90
Bulb Wattage
18
Canopy Diameter
6.1
Canopy Height
2.24
Cap Included
Yes
Case Quantity
1
CEC Uploaded
Yes
Ceiling To Blade Edge
12.18
Ceiling to Bottom No LK
13.15
Ceiling to Bottom with LK
14.52
CFM Low
2166
CFM Medium
3638
Compatible Accessories
CCK8002BL, DR1-12BL, DR1-18BL, DR1-24BL, DR1-36BL, DR1-48BL, DR1-60BL, DR1-72BL, SCK1-52BL
Compatible Controls
BTCR9, BTR9, CRL4WH, WFR50
Compatible Wall Controls
CWRL4LA, CWRL4WH, WC1WH, WC2WH, WR500WH, WR501WH
Country of Origin
China
Current Draw High
0.47
Current Draw Low
0.22
Current Draw Medium
0.35
Damp Rated
Yes
DOEFTC Uploaded
Yes
Downrod Length
4.5
Exempt from DOE Procedure
No
Housing Diameter
8.27
Included Control
TR500
Included Control Type
Handheld
Leadwire
54
Max Ceiling Slope
19
Max Watt
57
Motor Finish Method Type
Painted
Motor Reversible
Yes
Number of Blades
3
Number Of Speeds
3
Regulated Product
Yes
Reverse Switch Location
Motor Housing
RPM High (VI)
187
RPM Low (II)
77
RPM Medium (IV)
131
Safety Rating
UL Approved, cUL Approved
Voltage Cycles
60HZ
Watts Low
13
Watts Medium
31
Watts Per Bulb
18


Other Details:
  • 3-Speed, Reversible AC Motor provides airflow up to 5,217 CFM. Compatible with Fanimation Bluetooth fanSync and most smart home devices (required controls sold separately)
  • Damp Rated for indoor and outdoor use
  • Downrod included - 1" diameter x 4.5" length
  • Features 3 blades and an 18-watt LED light kit with frosted glass shade
  • TR500 hand-held remote control is included. Push button remote control with variable fan speeds, infinite light levels and off button
Finish
Additional options that would change other selections
Call for Price
Qty:
BASE PRICE:
$
320
00
/ / 1
($320.00 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
  • Manufacturer availability unknown.
