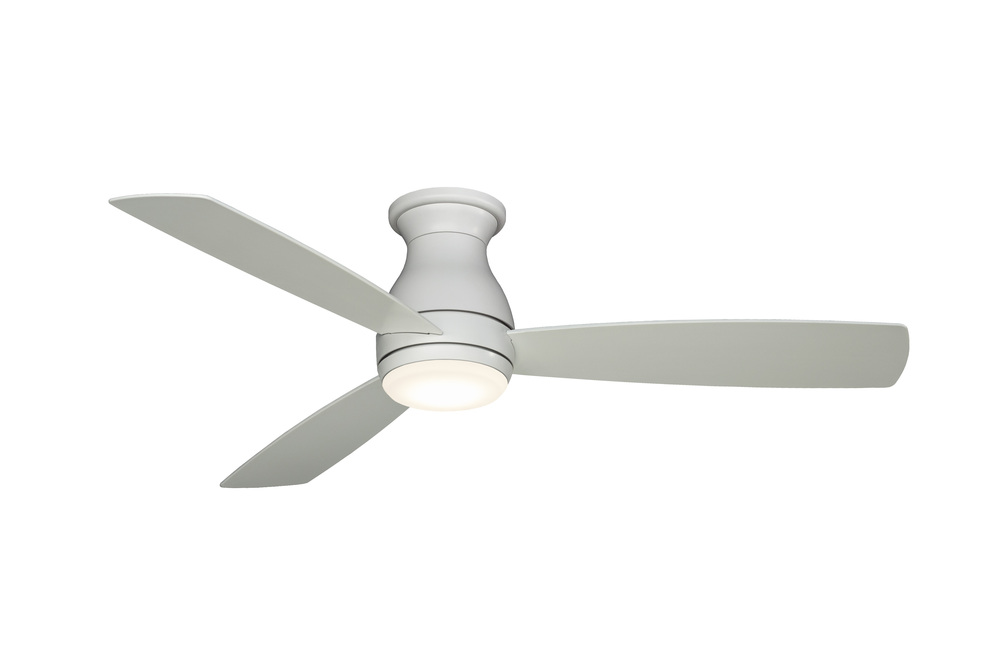

Hugh - 52 inch - MWW with MW Blades and LED - 220V
Image may not reflect selected features
Energy Information at High Speed
Airflow
5300 Cubic Feet per Minute
Electricity Rate
47 Watts (excluded lights)
Airflow Efficiency
113 Cubic Feet Per Minute Per Watt
Product Specification
Item #
G92K
Dimensions
Height: 11.74"
Width: 52.00"
Length: "
Additional product details
Category
Fans
Subcategory
Ceiling Fans with Light
Finish
White
Style
Traditional
Option
LED
Glass Finish or Style
Frosted , Opal
Number of Blades
3 Blades
Category
Fan-Uni
Finish
Matte White
Family
Hugh 52
Glass
Opal Frosted
Voltage
240 V
Number of Bulbs
1 Bulbs
Additional Info
3 speed AC motor with reverse switch - Compatible with 220 volt electricity only , 3785 CFM on High , Limited Lifetime Warranty , Set of (3) 44 or 52 inch Wet Rated blades and 18 watt LED light kit with cover and bulbs included , TR500 handheld remote with 23A battery included , WiFi or bluetooth compatible (required controls sold separately)
Air Flow CFM
5300
Air Flow Efficiency
113
Amperage
0.19
Blade Finish
Matte White
Blade Pitch
12
Blade Span
52
Bulb Type
18 Watt LED Module
Canopy
6.77 Dia
Diameter
7.85
Electricity Used
47
Harmonized Codes
8414.51.3000
Kelvin
3000
Length
52
Light Kit Included
Yes
Lumens / Light Output
1460
Material
Composite
Motor Fan Speed
3
Motor RPM
190
Motor Size
153 x 20
Motor Type
AC
Remote Control Included
C6WH-8355-220
Ship Carton Height
10.55
Ship Carton Length
25.2
Ship Carton Width
9.65
Ship Weight
18.69
Sold By
Each
Switch/Control Included
Yes, C6WH-8355-220
Warranty
Limited Lifetime
Weight
16.53
Airflow Efficiency Low
212
Airflow Efficiency Medium
147
Blade Finish Method
Painted
Blade Material
Composite
Blade Reversible
No
Blade Sweep
52
Bulb Base
Connector Pin
Bulb CRI
80
Bulb Wattage
18
Canopy Diameter
6.77 Dia
Cap Included
No
Carton Cubic Feet
1.48
Cartons Per Unit
1
Case Height
10.55
Case Length
25.2
Case Quantity
1
Case Weight Pounds
18.69
Case Width
9.65
CEC Uploaded
No
Ceiling To Blade Edge
9.36
Ceiling To Bottom
11.35 , 11.74
Ceiling to Bottom with LK
19.32
CFM Low
2400
CFM Medium
3500
Compatible Controls
BTCR9-220, CRL4WH-220
Country of Origin
China
CRI
80
Current Draw High
0.19
Current Draw Low
0.1
Current Draw Medium
0.14
DOE-FTC Uploaded
No
DOEFTC Uploaded
No
Exempt from DOE Procedure
Yes
Housing Diameter
7.85
Included Control
C6WH-8355-220
Included Control Type
Wall
IP Rating
IP21
Leadwire
11
Max Watt
47
Motor Finish Method Type
Painted
Motor Reversible
Yes
Number of Blades
3
Number Of Speeds
3
Regulated Product
Yes
Reverse Switch Location
Switch Housing
RPM High (VI)
190
RPM Low (II)
88
RPM Medium (IV)
146
RPM Medium High (V)
129
Safety Rating
UL Approved, cUL Approved
Voltage Cycles
50 hz
Watts Low
11
Watts Medium
24
Watts Per Bulb
18


Other Details:
  • 3 Speed Ac Motor With Reverse Switch - Compatible With 220 Volt Electricity Only
  • 3785 Cfm On High
  • C6wh-8355-220 Wall Control Included
  • Limited Lifetime Warranty
  • Set Of (3) 44 Or 52 Inch Wet Rated Blades And 18 Watt Led Light Kit With Cover And Bulbs Included
  • Wifi Or Bluetooth Compatible (required Controls Sold Separately)
Ceiling To Bottom
