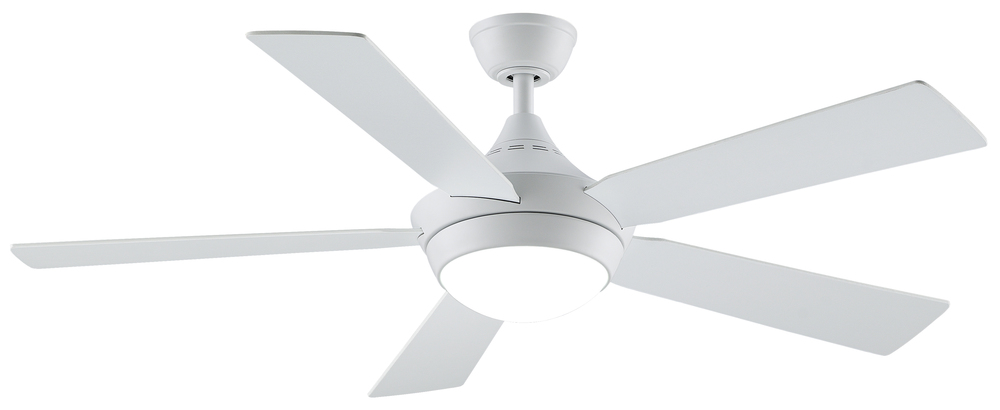

Celano v2 - 52 inch - MW with MW Blades and LED

Image may not reflect selected features

Energy Information at High Speed

Airflow

5596 Cubic Feet per Minute

Electricity Rate

60 Watts (excluded lights)

Airflow Efficiency

93 Cubic Feet Per Minute Per Watt

Downloads

Click Here to View Spec Sheet Details

Click Here to View Owners Manual

Product Specification

Item #

GD0Y

Dimensions

Height: 14.71"

Width: 52.00"

Length: "

Additional product details

Category

Fan-Uni

Finish

Matte White

Option

Dry Rated

Family

Celano V2

Glass

Opal Frosted

Voltage

120 V

Number of Bulbs

1 Bulbs

Additional Info

3 speed AC motor with reverse switch, fan speed, light controls and sleep timer features , 5192 CFM on High , Limited Lifetime Warranty , Set of 5 52 inch blades with multiple finish options and 18 watt LED light kit with bulb included , TR500 handheld remote with 23A battery included , WiFi or bluetooth compatible (required controls sold separately)

Air Flow CFM

5596

Air Flow Efficiency

Amperage

0.51

Blade Finish

Matte White

Blade Pitch

Bulb Type

18 Watt LED Module

Canopy

5.51 Dia x 2.2 H

Diameter

11.48

Down Rod Included

4.5

Electricity Used

Harmonized Codes

8414.51.3000

Kelvin

3000

Length

Light Kit Included

Yes

Lumens / Light Output

1400

Material

Wood

Motor Fan Speed

Motor RPM

174

Motor Size

172 X 17

Motor Type

Remote Control Included

TR500

Ship Carton Height

10.51

Ship Carton Length

24.72

Ship Carton Width

13.62

Ship Weight

20.59

Sold By

Each

Warranty

Limited Lifetime

Weight

17.86

Airflow Efficiency Low

203

Airflow Efficiency Medium

139

Avg Airflow Efficiency

Avg CFM Energy

3402

Avg Energy Use Watts

Avg Estimated Yearly Energy Cost

Avg Estimated Yearly Energy Cost on HIGH

Blade Finish Method

Paper Overlay

Blade Material

Wood

Blade Reversible

Blade Sweep

Bulb Base

Connector Pin

Bulb CRI

Bulb Wattage

Canopy Diameter

5.51 Dia

Canopy Height

2.2 H

Cap Included

Carton Cubic Feet

2.05

Cartons Per Unit

Case Height

10.51

Case Length

24.72

Case Quantity

Case Weight Pounds

20.59

Case Width

13.62

CEC Uploaded

Yes

Ceiling To Blade Edge

11.1

Ceiling To Bottom

14.71

CFM Low

1896

CFM Medium

3525

Compatible Accessories

CCK8002MW, DR1-12MW, DR1-18MW, DR1-24MW, DR1-36MW, DR1-48MW, DR1-60MW, DR1-72MW, DR1-CPMW, SCK1-52MW

Compatible Controls

BTCR9, BTR9, CRL4WH, WFR50

Compatible Wall Controls

CWRL4LA, CWRL4WH, WC2WH, WR501WH

Country of Origin

China

CRI

Current Draw High

0.51

Current Draw Low

0.2

Current Draw Medium

0.33

DOE Classification

LSSD

DOE-FTC Uploaded

Yes

DOEFTC Uploaded

Yes

Downrod Length

4.5

Dry Rated

Yes

Exempt from DOE Procedure

Fan Energy Star

Housing Diameter

11.48

Included Control

TR500

Included Control Type

Handheld

Leadwire

Light Kit Energy Star

Max Ceiling Slope

Max Watt

Maximum Slope Degree

Motor Finish Method Type

Painted

Motor Reversible

Yes

Number of Blades

Number Of Speeds

Regulated Product

Yes

Reverse Switch Location

Motor Housing

RPM High (VI)

174

RPM Low (II)

RPM Medium (IV)

106

Safety Rating

UL Approved, cUL Approved

Voltage Cycles

60 hz

Watts Low

Watts Medium

Watts Per Bulb

Other Details:

3 Speed Ac Motor With Reverse Switch, Fan Speed, Light Controls And Sleep Timer Features
5192 Cfm On High
Limited Lifetime Warranty
Set Of 5 52 Inch Blades With Multiple Finish Options And 18 Watt Led Light Kit With Bulb Included
Tr500 Handheld Remote With 23a Battery Included
Wifi Or Bluetooth Compatible (required Controls Sold Separately)
