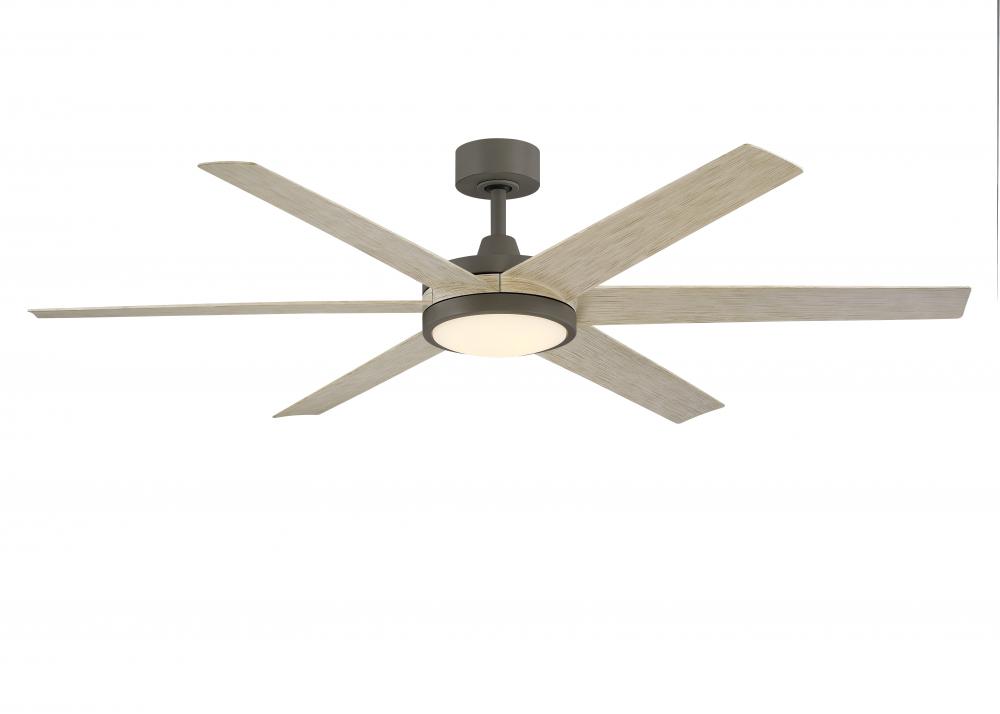

Brawn - 64" - AGP with LO Blades
Image may not reflect selected features
/vendors/90/large/FPD6605AGP.jpg
additional image
additional image
Downloads
Click Here to View Spec Sheet
Click Here to View Installation Sheet
Product Specification
Item #
K8PT
Dimensions
Height: 14.60"
Width: 64.00"
Length: "
Additional product details
Category
Fans
Subcategory
Ceiling Fans with Light
Finish
Black
Category
Fan-Uni
Finish
Antique Graphite
Family
Brawn
Glass
Opal Frosted
Voltage
120 V
Number of Bulbs
1 Bulbs
Air Flow CFM
7443
Air Flow Efficiency
228
Blade Finish
Light Oak
Blade Pitch
11
Blade Span
64
Bulb Type
LED Module
Canopy
5.9 Dia x 2.5 H
Harmonized Codes
8414.51.3000
Kelvin
3000/4000/5000
Light Kit Included
Yes
Lumens / Light Output
2700
Motor Size
DC 126 x 12
Motor Type
DC
Ship Carton Height
7.87
Ship Carton Length
31.34
Ship Carton Width
18.54
Ship Weight
23.59
Sold By
Each
Warranty
Limited Lifetime Warranty
Weight
20.29
Airflow Efficiency Low
713
Airflow Efficiency Medium
561
Avg Airflow Efficiency
214
Avg CFM Energy
4693
Avg Energy Use
22
Avg Estimated Yearly Energy Cost
6
Avg Estimated Yearly Energy Cost on HIGH
9
Blade Finish Method
Painted
Blade Material
Composite
Blade Reversible
No
Blade Sweep
64
Bulb Base
Connector Pin
Bulb CRI
90
Cap Included
No
Carton Cubic Feet
2.6463
Case Height
7.87
Case Length
31.34
Case Quantity
1
Case Weight Pounds
23.59
Case Width
18.54
CEC Uploaded
Yes
Ceiling To Blade Edge
12
Ceiling To Bottom (With Light Kit)
14.6
CFM Low
1576
CFM Medium
4749
Country of Origin
China
Current Draw High
0.45
Current Draw Low
0.04
Current Draw Medium
0.13
DOE Classification
LSSD
DOE-FTC Uploaded
Yes
Downrod Length
6
Exempt from DOE Procedure
No
Fan Energy Star 4
No
Housing Diameter
10.5
Included Control
TR305
Included Control Type
Handheld
Leadwire
29
Light Kit Energy Star 4
No
Location Rating
Damp
Max Ceiling Slope
27
Max Wattage
30 W
Motor Finish Method Type
Painted
Motor Reversible
Yes
Number of Blades
6
Number Of Speeds
16
Regulated Product
Yes
Reverse Switch Location
Control
RPM High
136
RPM Low
29
RPM Medium
86
Safety Rating
UL Approved
Voltage Cycles
60HZ
Watts High
33
Watts Low
2
Watts Medium
8


Other Details:
  • Damp Rated For Indoor Or Outdoor Use
  • DC motor with reverse switch, variable fan speeds, light control, sleep timer, home away, fresh air features
  • Included 30 watt light kit features Correlated Color Temperature (CCT) Select technology, providing a selection of light colors ranging from warm white, bright light or daylight – giving you the ability to adjust your lighting needs
  • Included WiFi technology makes Brawn compatible with most smart home devices
  • Installation is a breeze using Fanimation's Kwikwire technology
  • Set of (6) blades included
