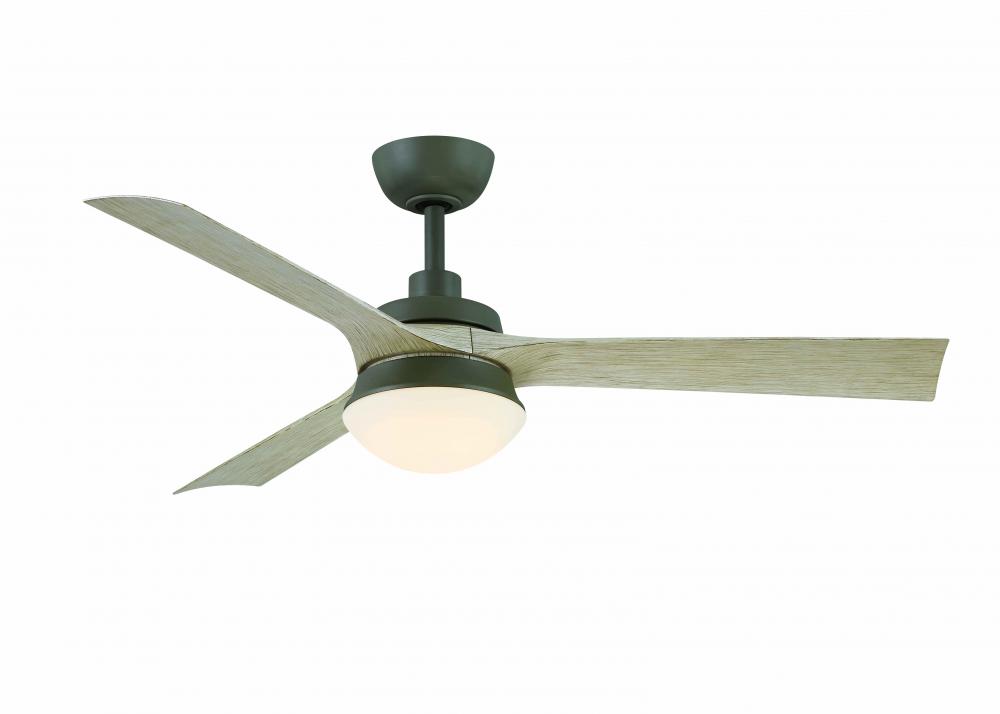

Barlow - 52" - AGP with LO Blades
Image may not reflect selected features
/vendors/90/large/FP6807AGP.jpg
additional image
Downloads
Click Here to View Spec Sheet
Click Here to View Installation Sheet
Product Specification
Item #
K8PM
Dimensions
Height: 16.64"
Width: 52.00"
Length: "
Additional product details
Category
Fans
Subcategory
Ceiling Fans with Light
Finish
Black
Category
Fan-Uni
Finish
Antique Graphite
Family
Barlow
Glass
Opal Frosted
Voltage
120 V
Number of Bulbs
1 Bulbs
Air Flow CFM
5476
Air Flow Efficiency
93
Blade Finish
Light Oak
Blade Pitch
14
Blade Span
52
Bulb Type
LED Module
Canopy
6.5 Dia x 2.58 H
Harmonized Codes
8414.51.3000
Kelvin
3000
Light Kit Included
Yes
Lumens / Light Output
2000
Motor Size
AC 153 X 20
Motor Type
AC
Ship Carton Height
10.94
Ship Carton Length
27.76
Ship Carton Width
14.76
Ship Weight
21.56
Sold By
Each
Warranty
Limited Lifetime Warranty
Weight
18.13
Airflow Efficiency Low
175
Airflow Efficiency Medium
122
Avg Airflow Efficiency
104
Avg CFM Energy
3951
Avg Energy Use
38
Avg Estimated Yearly Energy Cost
11
Avg Estimated Yearly Energy Cost on HIGH
17
Blade Finish Method
Painted
Blade Material
Composite
Blade Reversible
No
Blade Sweep
52
Bulb Base
Connector Pin
Bulb CRI
90
Cap Included
No
Carton Cubic Feet
2.5941
Case Height
10.94
Case Length
27.76
Case Quantity
1
Case Weight Pounds
21.56
Case Width
14.76
CEC Uploaded
Yes
Ceiling To Blade Edge
11.75
Ceiling To Bottom (With Light Kit)
16.64
CFM Low
2222
CFM Medium
3784
Country of Origin
China
Current Draw High
0.49
Current Draw Low
0.23
Current Draw Medium
0.36
DOE Classification
LSSD
DOE-FTC Uploaded
Yes
Downrod Length
6
Exempt from DOE Procedure
No
Fan Energy Star 4
No
Housing Diameter
9.25
Included Control
TR500
Included Control Type
Handheld
Leadwire
54
Light Kit Energy Star 4
No
Location Rating
Damp
Max Ceiling Slope
27
Max Wattage
24 W
Motor Finish Method Type
Painted
Motor Reversible
Yes
Number of Blades
3
Number Of Speeds
3
Regulated Product
Yes
Reverse Switch Location
Control
RPM High
141
RPM Low
60
RPM Medium
100
Safety Rating
UL Approved
Voltage Cycles
60HZ
Watts High
59
Watts Low
13
Watts Medium
31


Other Details:
  • 3 Speed Ac Motor With Reverse Switch, Fan Speed, Light Controls And Sleep Timer Features
  • Damp Rated For Indoor Or Outdoor Use
  • Limited Lifetime Warranty
  • Set of (3) 52 inch blades with multiple finish options and 24 watt LED light kit with bulb included
  • Tr500 Handheld Remote With 23a Battery Included
  • Wifi Or Bluetooth Compatible (required Controls Sold Separately)
