ItemDetail | LIGHTING BOUTIQUE

No Image
Available

Image may not reflect selected features

/vendors/87/large/906030fhb-lda_atom.jpg

Downloads

Click Here to View Spec Sheet Basic

Click Here to View Spec Sheet Details

Click Here to View Installation Sheet

Product Specification

Item #

9X1YM

Dimensions

Height: 13.25"

Width: 30.00"

Length: "

Additional product details

Category

Fan

Finish

Heritage Brass

Style

Traditional

Family

Atom

Glass

Etched Opal

Voltage

120 V

Number of Bulbs

1 Bulbs

Air Flow Efficiency

2845

Amperage

0.46

Blade Finish

Matte Black

Blade Pitch

Blade Span

Blades Included

Yes

Bulb Dimmable

Yes - CL Type Dimmer (SSL7A)

Bulb Hours

50000

Bulb Type

LED

Canopy

6 Dia. x 2.25 D

Introduction Date

01/01/2024

Kelvin

3000

Light Kit Included

Yes

Lumens / Light Output

1320

Material

Steel

Motor Size

153 x 12

Motor Type

Ship Carton Height

9.53

Ship Carton Length

17.44

Ship Carton Width

16.38

Ship Weight

15.26

Vendor Ship Method

Parcel

Weight

13.23

Airflow Avg

2114

AMPS Avg

0.34

Avg Energy Use

Blade Material

Composite

Blade Options Available

Blade To Ceiling Height

Blades Reversible

Bulb CRI

Bulb Included

Yes

Control Type

HIRO Control - 3 Speed Manual Reversing

Country of Origin

China

DM Airflow Avg

1690

DM Airflow High

2314

DM AMPS Avg

0.32

DM AMPS High

0.43

DM Avg Energy Use

DM Efficiency Avg

DM Efficiency High

49.2

DM Energy Cost Avg

DM Energy Cost High

13.18

DM Energy Use High

DM RPMS Avg

100

DM RPMS High

223

Dual Mount

Yes

Efficiency Avg

Efficiency High

Energy Cost Avg

Energy Cost High

15.36

Energy Use High

54.8

Fan Control

Yes

Flush Mount Fan

Incandescent Equivalency

100 W

Light Kit Adaptable

Light Source

Integrated LED

Location Rating

Damp Rated

Max Wattage

16 W

Motor Fan Speed

Number of Blades

Operating Frequency

Prop 65 Description

CALIFORNIA PROP 65: WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. for more information go to www.P65Warnings.ca.gov

Receiver Included

Yes

Reversing Control

Yes

RPMS Avg

174

RPMS High

234

Safety Rating

UL Approved, C-US Approved

Single Power Switch

Slope

Sloped Ceiling Adaptable

Yes

Stand By Power

0.29

Title 24

Yes

WIFI Control Included

Yes

WIFI Control Optional

Other Details:

Blades, controls, switches, capacitors and hardware carry a 1-year warranty
Classic, elegant lines and timeless details enhance a traditional space
Fan Control included, HIRO Control - 3 Speed Reversing
Fan mounts directly to canopy or with an included downrod for dual mount capability
Fans should be installed at a minimum of 7 feet from the floor
For more information on how to control your ceiling fan via the Hinkley Home Automation App, click here.
LED components carry a 5-year limited warranty
Motor carries a lifetime warranty
Suitable for use in damp locations as defined by NEC and CEC. Meets United States UL Underwriters Laboratories & CSA Canadian Standards Association Product Safety Standards.
The Regency Series features a range of traditional ceiling fans designed to enhance a wide variety of spaces with ease.
This item includes a 4.5" down rod. Other various lengths of down rods are available and sold separately to customize the installation height.
This item includes a light kit cover
This item may be hung on a sloped ceiling
WiFi compatible with included fan control

Finish

Additional options that would change other selections

Call for Price

Qty:

BASE PRICE:

299

/ / 1

($299.00 / 1)

Add To Cart

Add To Estimate

Add To Wishlist

Save To Compare

Availability:

Manufacturer has 159 items available.
More Items available 03/17/2025.

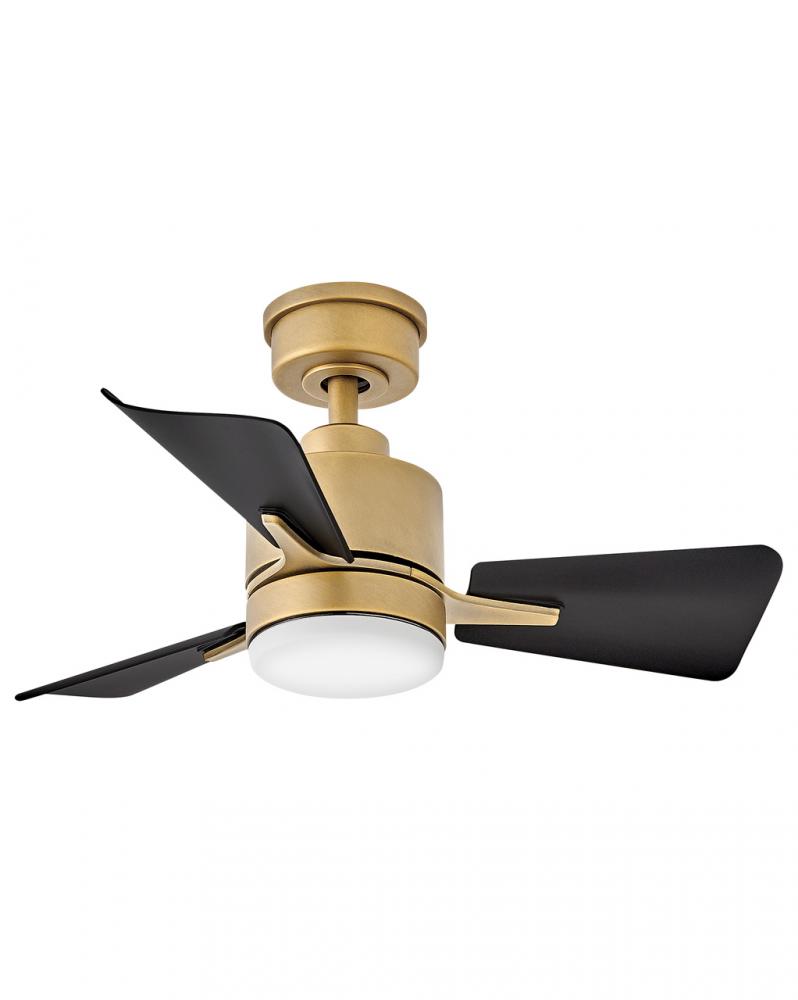

Atom 30" LED Fan (9X1YM)
